Description

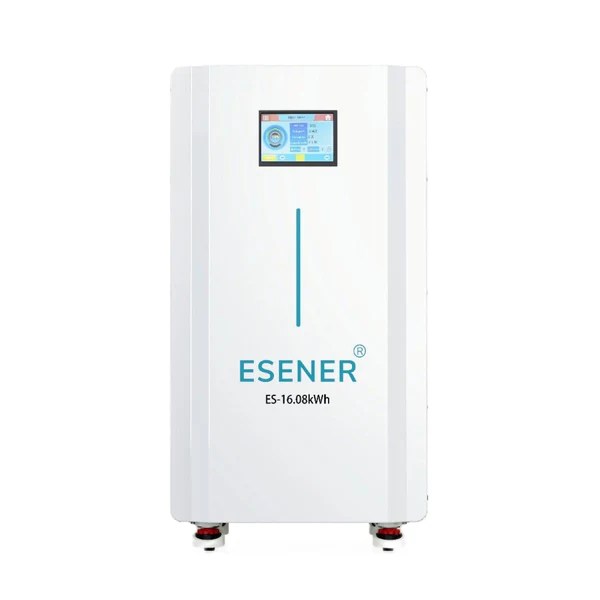

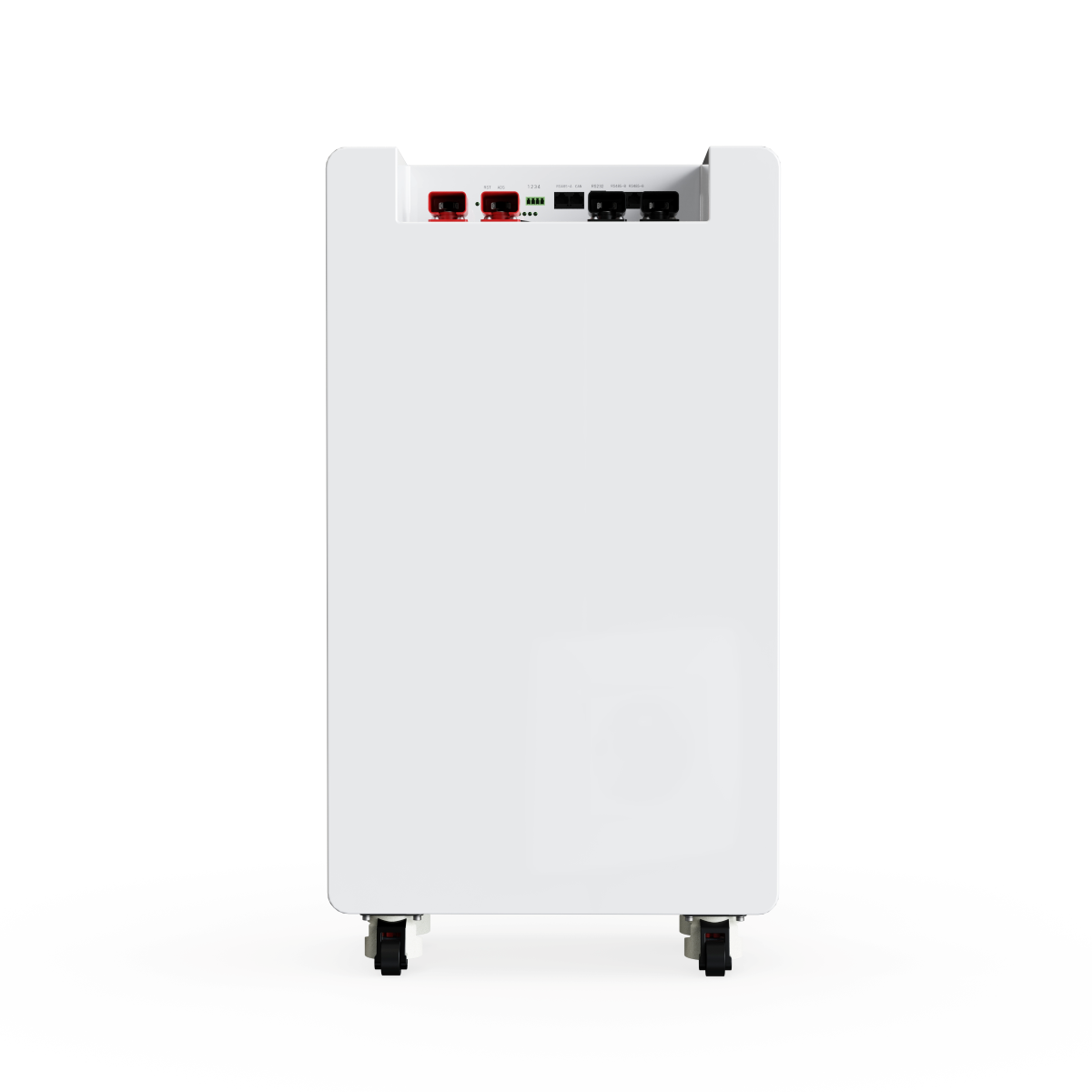

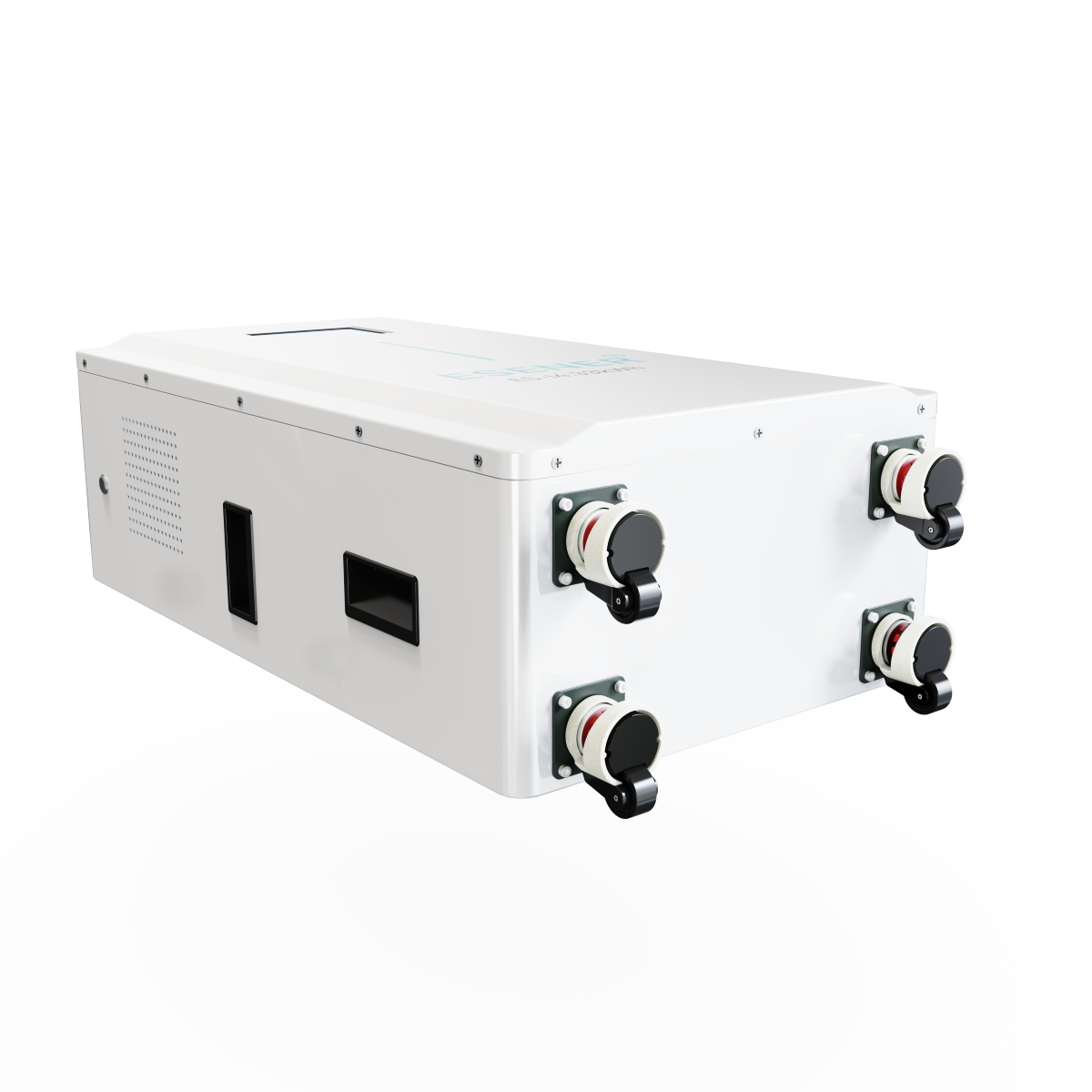

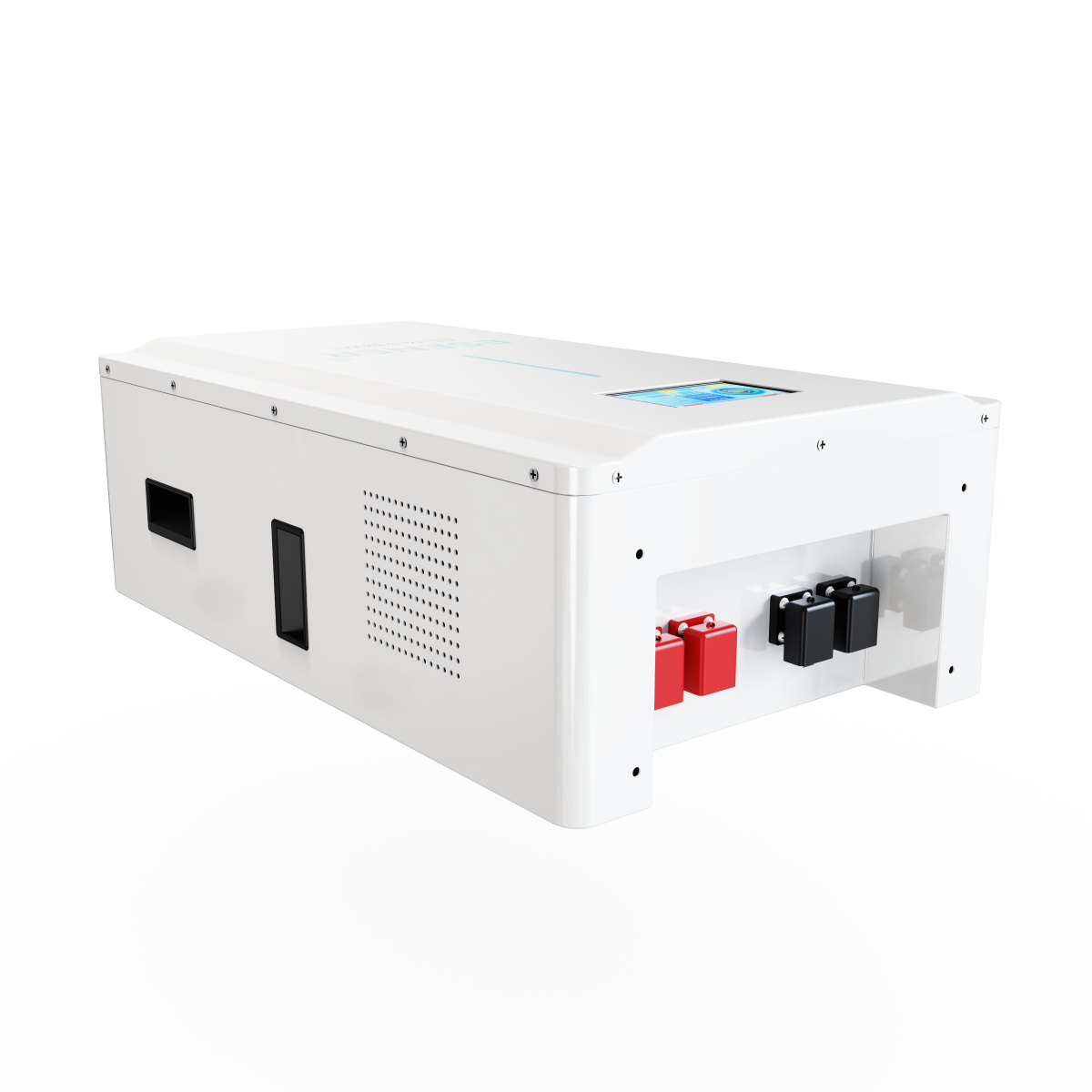

The ESENER ES-16.8 KWH 51.2V 314Ah Lithium Battery delivers exceptional performance, reliability, and efficiency for large-scale solar and backup power systems. Built with advanced LiFePO₄ technology, this battery ensures long cycle life, excellent high-temperature performance, and seamless communication with leading inverter brands. Its integrated Battery Management System (BMS) provides enhanced protection and optimal operation, making it an ideal choice for residential, commercial, and industrial energy storage solutions.
Product Features:
- High Capacity – 51.2V, 314Ah design provides reliable energy storage for demanding applications.
- Advanced BMS – Integrated Battery Management System with current limiting function for safety and efficiency.
- Inverter Compatibility – CAN Bus communication for smooth integration with brands like ESENER, Deye, MEGAREVO, Goodwe, SRNE, Growatt, Sofar Solar, SMA, and more.
- Long Service Life – High cycle life ensures years of dependable performance.
- High Energy Density – More power in a compact, space-saving design.
- Excellent Thermal Performance – Operates efficiently even in high-temperature conditions.
- Safe & Reliable – Over-temperature, over-charge, and over-discharge protection.
- Versatile Use – Compatible with most inverters and chargers.
Specifications:
- Model: ES-16.08kWh
- Rated Capacity (5HR): 314Ah
- Voltage: 51.2V
- Discharge Cut-off Voltage: 44.8V
- Equalized Charge Voltage: 57.6V
- Max. Continuous Charging Current: 200A
- Max. Continuous Discharging Current: 200A
- Weight: Approx. 120kg
- Display: LCD
- Parallel: Up to 15 packs with full communications
- Dimensions (W x D x H): 430mm x 230mm x 900mm
- Ports: 1x CAN-Bus, 1x RS-485 Battery Link, 2x Parallel Instruction Ports
- Cells: New Li-ion Prismatic Cells
- Warranty: 5 Years
- Design Life: ±15 Years
- Cycle Life @ 1C: ±4000 cycles @ 100% DOD / 6000+ cycles @ 80% DOD
- Certifications: CE, UN38.3, IEC, MSDS
- Outer Package Material: White baked lacquer steel case
- Operating Temperature:
- Charging: 0°C to +50°C
- Discharging: -10°C to +50°C
- Storage: -10°C to +50°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
- Compatible Inverters: ESENER, Deye, Growatt, Sunsynk, Luxpower, Victron, SMA, Voltronic, etc.
